EOS EmoTec D | Control Unit
EOS EmoTec D | Control Unit
Premium-class digital sauna control unit for the dry (Finnish) sauna.

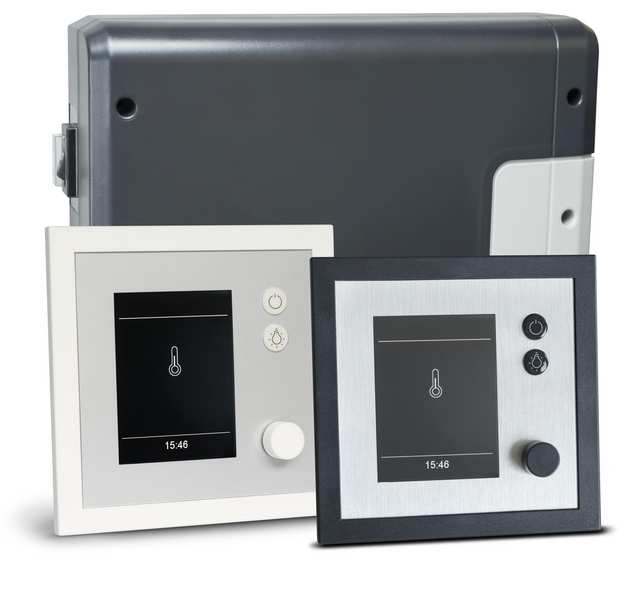

Advanced control unit for private and commercial operation with a remote control panel and a separate relay box. Includes digital sensor with 5 m cable. Innovative operation concept with jog-dial switch, quick access to all functions. Display panel may be installed remotely at up to 100 m distance. Modern TFT colour display with menu navigation in 19 languages.
Designed and manufactured in Germany, EOS quality products are characterized by a perfect interaction of extensive know-how of our constructors and the passion towards the product and the performance.
|
Item no. |
|

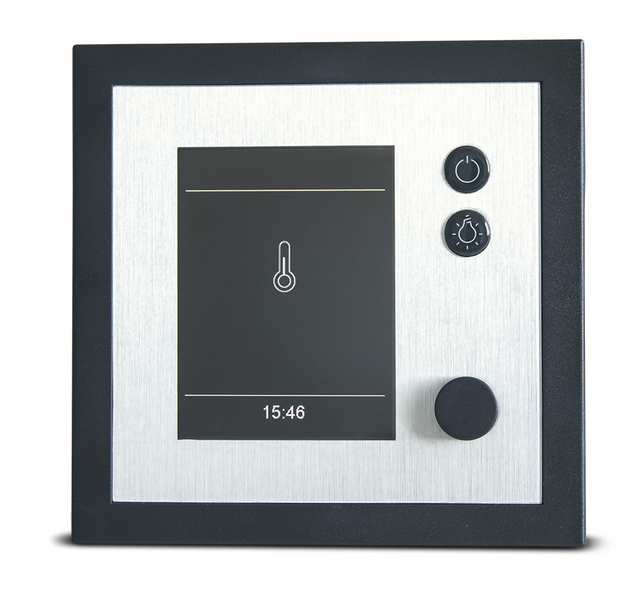

945559 - EOS EmoTec D anthracite / silver |
|

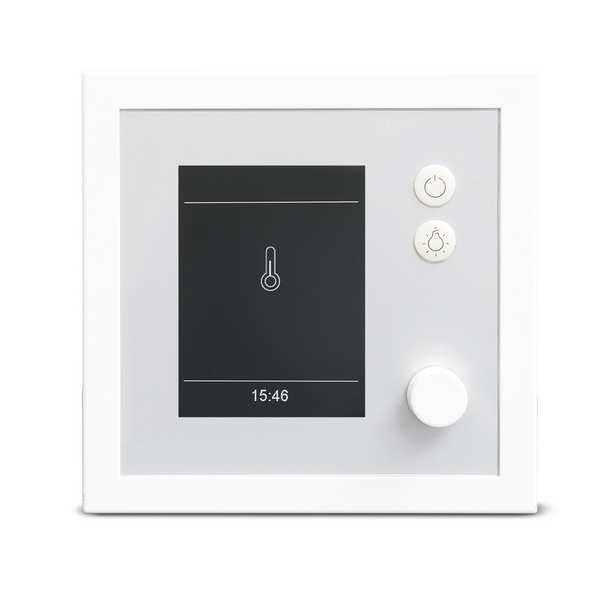

946053 - EOS EmoTec D white / silver |
|

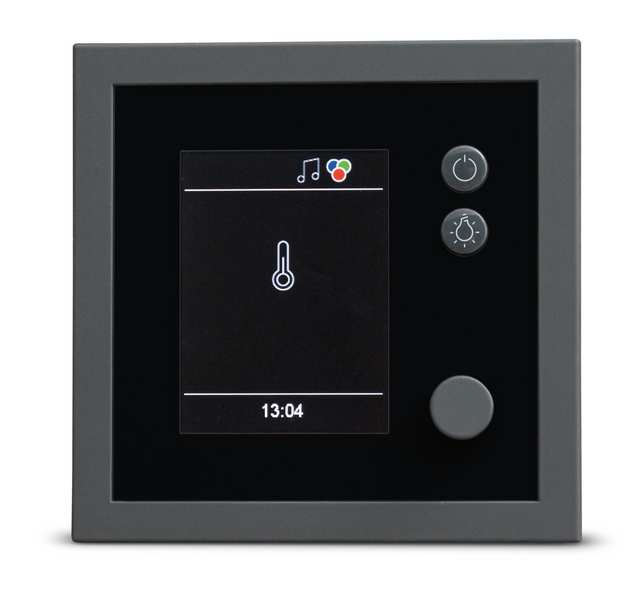

947256 - EOS EmoTec D anthracite / black |
Share
Collapsible content
Your Advantages
- Premium class digital control unit for very demanding private and commercial saunas.
- Compact-size control panel with a TFT colour display with flush-mounted or surface-mounted installation.
- Digital temperature control range: 30°C - 115°C.
- Display panel available in anthracite, black or white design.
- Menu navigation in 19 languages (DE, EN, FR, RU, ES, NL, IT, PL, SLO, FIN, TR, CZ, RO, BG, HU, HR, SK, DK).
- Innovative operation with jog-dial switch - simple, easy, intuitive.
- With a separate slim-size display panel (can be installed up to 100 m away from the sauna).
- Dimmable cabin light output 230V, automatic detection of inductive and capacitive loads.
- Output for ventilation fan 230V (3 speeds).
- 24 h pre-set timer and extended week timer (4 programs per day possible).
- Heating time limitation 6 h / 12 h / unlimited.
- Display panel with screen saver and sleep mode.
- Holiday home mode and display lock per pin code.
- Pin code protected service level for setup and fine tuning.
- Volt-free output.
- Digital type sensor for precise and interference-resistant control. Bench sensor optionally available.
- Quick check for pre-set and real temperature in the sauna.
- Digital micro-chip based temperature sensor with 5 m cable.
- Firmware can be updated with a micro SD card (not included).
- Additional control features through optional extensions: coloured light control for LED, music control, remote start and operation.
- Switching capacity 9 kW, extendable.
- Power supply 400V 3N AC.
Technical Specifications
Electrical connection
400 V 3N ~ 50 Hz
Power output
10,0 kW (extension possible with LSG: LSG 10 / LSG 18 / LSG 36)
Temperature control range
30 - 115 °C
Heating time limitation
6 h, 12 h, unlimited
Start time pre-selection
24 h real time or week timer
Cabin light output
230 V, dimmable. Resistive, capacitive, inductive load
Fan output
230 V / max. 150 W, adjustable speed
Sensor system
Digital, inc. 5 m cable. 2nd sensor optional.
Control panel (H/W/D)
127 x 130 x 25 mm flush-mounting or surface-mounting
Relay box (H/W/D)
270 x 300 x 100 mmwall-mounting
