• Very space-saving, slim design - ideal for small, compact size saunas – only 0.8 ft / 25 cm depth.
• Flat back - ideal for the placement in front of glass.

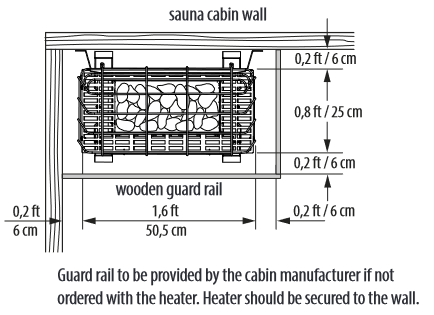

• Optional wooden safety guard rail.

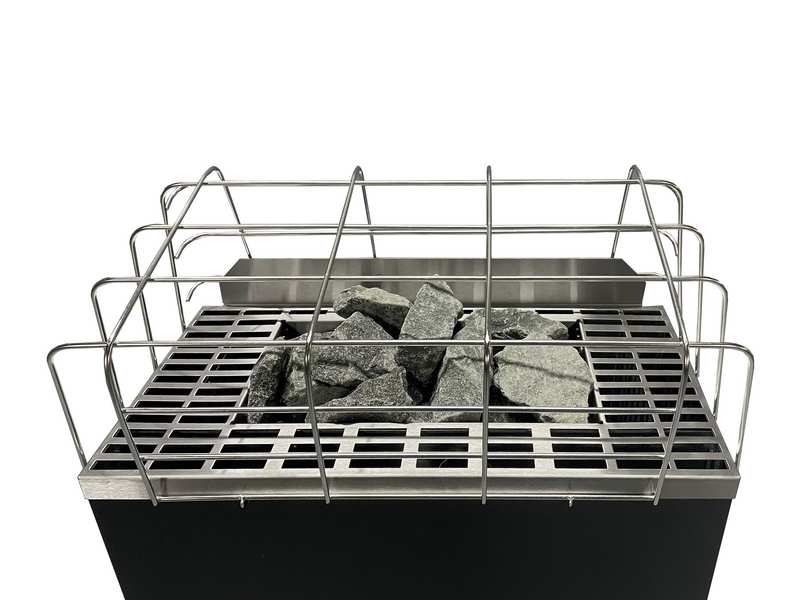

• Stylish brushed stainless steel top cover.
• Flat rear wall with flush-mounted terminal box.
• Rock store fits up to 44 lbs / 20 kg stones.

Electrical connection

240V 2PH / 208V 3PH AC 60 Hz

Dimensions H/W/D

76 x 50,5 x 25 cm / 2,5 x 1,6 x 0,8 ft

For sauna cabin size

3.2 - 4.5 sq m x 1.90 m (6.0 kW)
34.4 - 48.4 sq ft x 6.2 ft

4.2–6.3 sq m x 1.90 m (7.5 kW)
45.2-67.8 sq ft x 6.2 ft

4.7–7.4 sq m x 1.90 m (9.0 kW)
50.5-79.7 sq ft x 6.2 ft

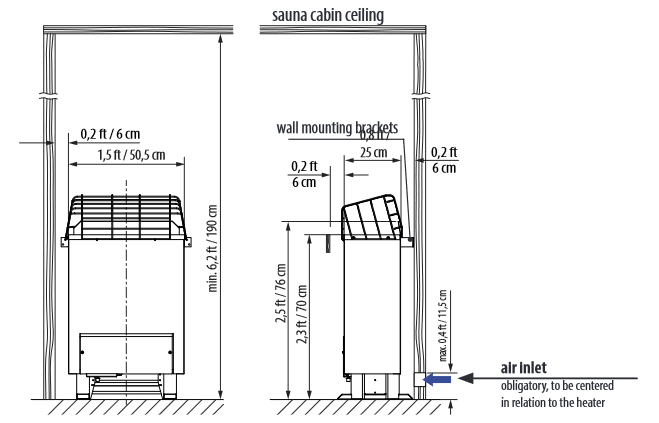

Min. size air inlet and outlet

35 x 5 cm (6.0 kW & 7.5 kW)
1,2 x 0,2 ft

35 x 6 cm (9.0 kW)
1,2 x 0,3 ft

Weight without rocks (6.0 / 7.5 / 9.0 kW)

20.5 kg / 21.0 kg / 21.5 kg
45,2 lbs / 46,3 lbs / 47,7 lbs

Stone filling

20 kg / 44 lbs

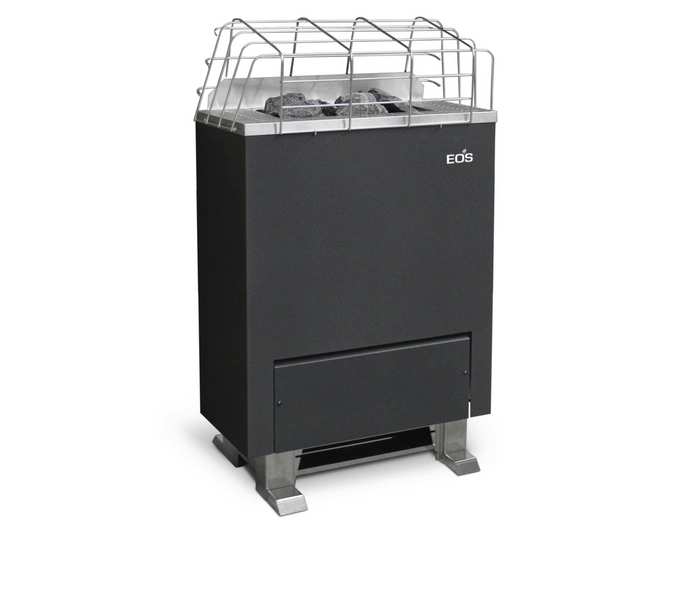

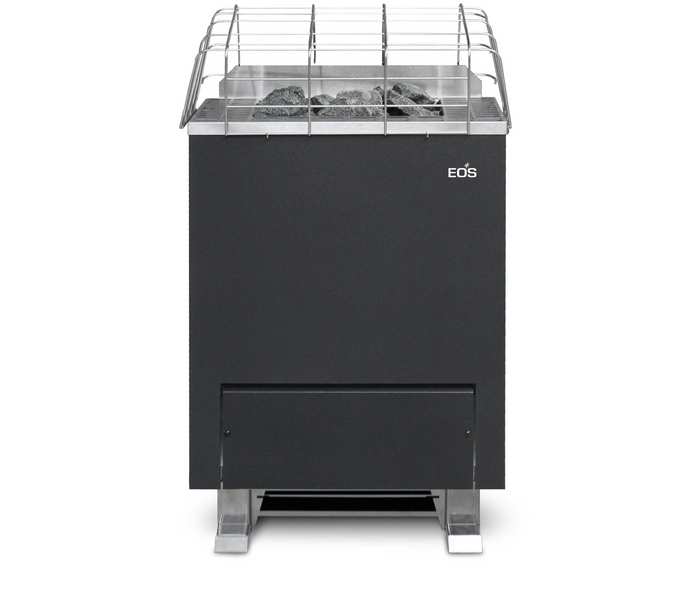

EOS Gracil (208V / 240V)

Power

Item no.

6.0 kW

947531 / 947534

7.5 kW

947532 / 947535

9.0 kW

947533 / 947536

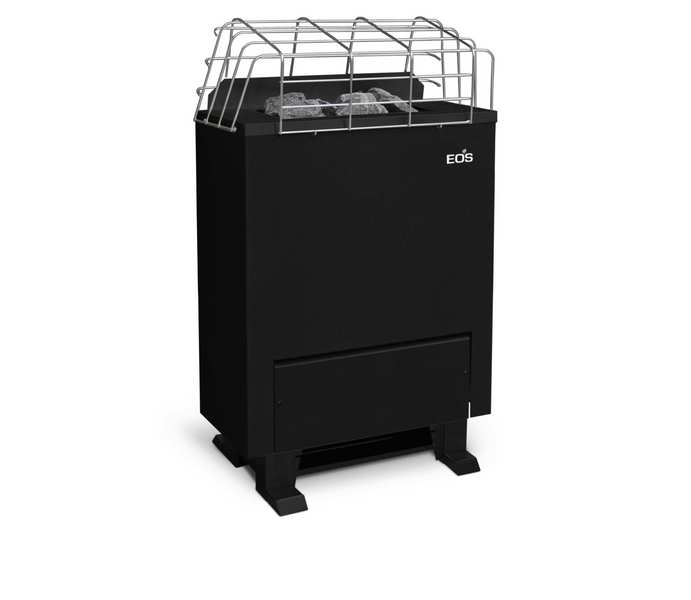

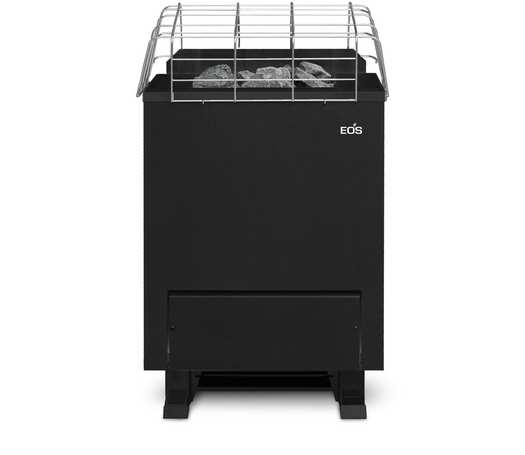

EOS Gracil black (208V / 240V)

Power

Item no.

6.0 kW

947985 / 947988

7.5 kW

947986 / 947989

9.0 kW

947987 / 947990
