EOS Cubo Avantgarde 7.5KW / 9KW

EOS Cubo Avantgarde 7.5KW / 9KW

$9,999.99 CAD
$9,999.99 CAD
Sale Sold out

Premium-class sauna heater for (dry) Finnish saunas

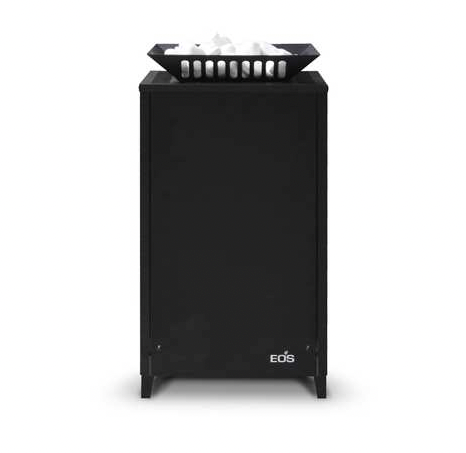

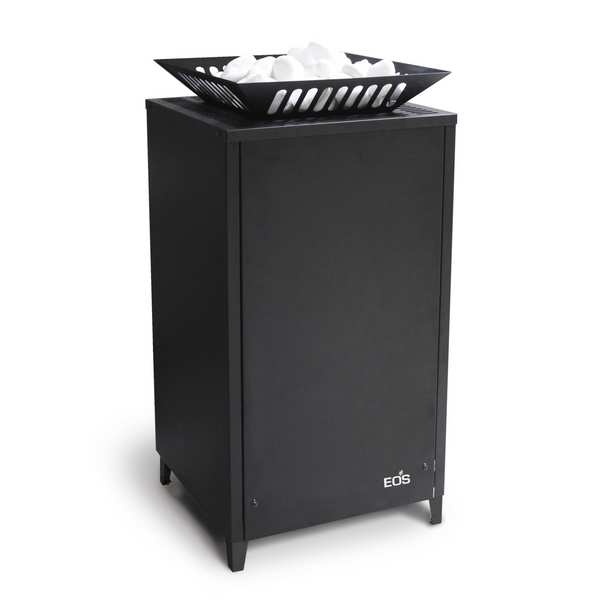

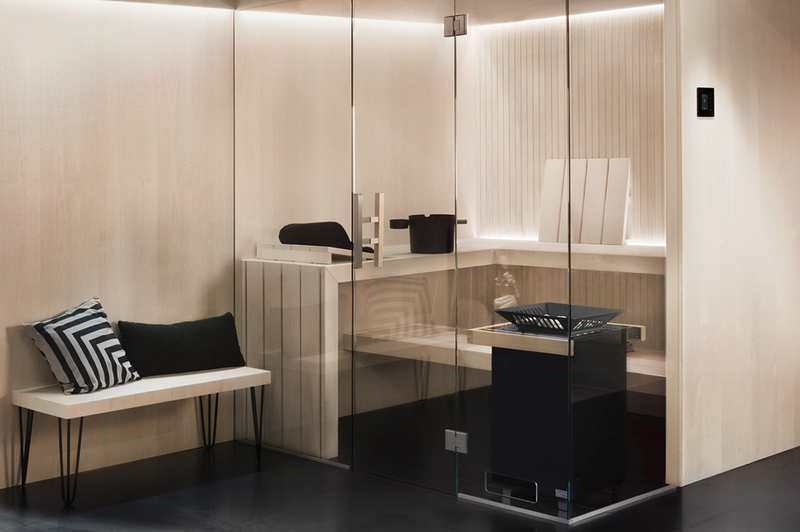

Floor-standing model designed for the Finnish (dry) sauna. It features a striking, distinctive design characterized by a stylish rock store extension frame filled with white quartz stones. The luxurious matte black finish on all sides perfectly completes the design, making it ideal for installation in the center of a room or in front of glass panels.
This model boasts a very space-saving design with a footprint of only 40 x 39 cm (approximately 1.3 x 1.3 ft). It is constructed to be service-friendly, with heating elements designed to avoid contact with the sauna stones. Optimized air convection and a suitably sized rock store ensure quick heating times and powerful sauna infusions.


The rock store can accommodate approximately 35 kg (77 lbs) of sauna stones. Delivery includes 10 kg (22 lbs) of rounded white quartz stones and 25 kg (55 lbs) of regular sauna stones.


Notice: Lay the quartz stones above the regular sauna stones for optimal performance.

*Please note, this heater is manufactured in and shipped from Germany, keep in mind that global freight forwarding timelines vary.

*Sauna controls sold separately.

View full details

Your Advantages

  • Robust, durable and service-friendly construction.

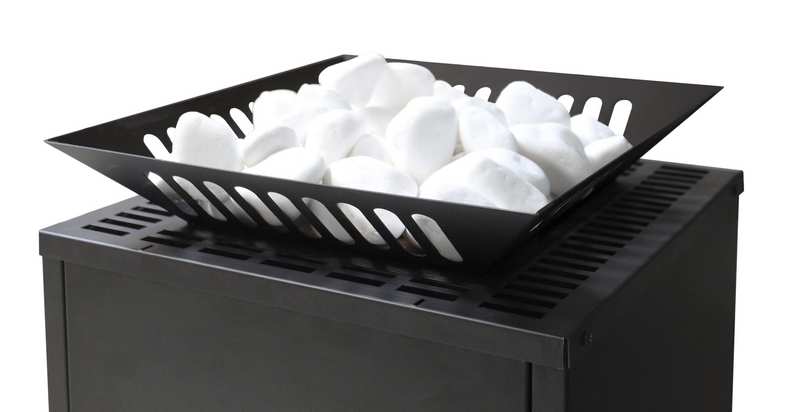

  • With rock store attachment and inclusive quartz stones.
  • Luxurious matte black finish on all sides including the top.
  • Compact size – only 38,5 cm / 1,3 ft depth.

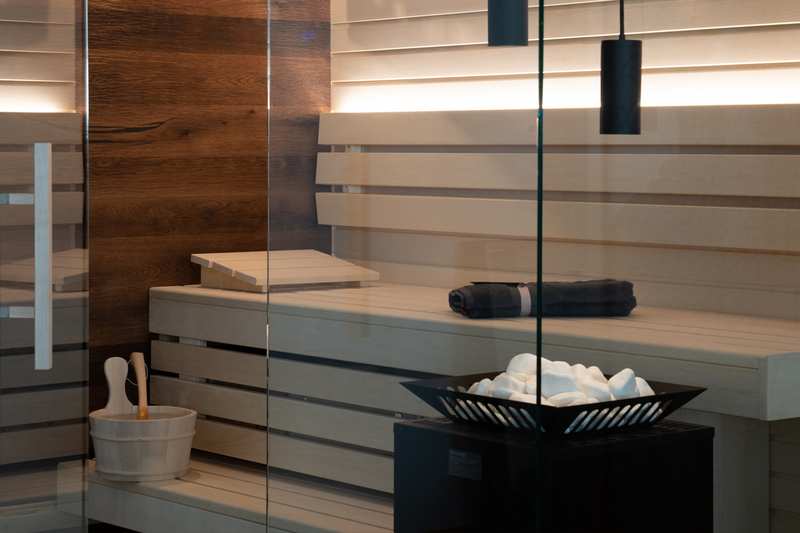

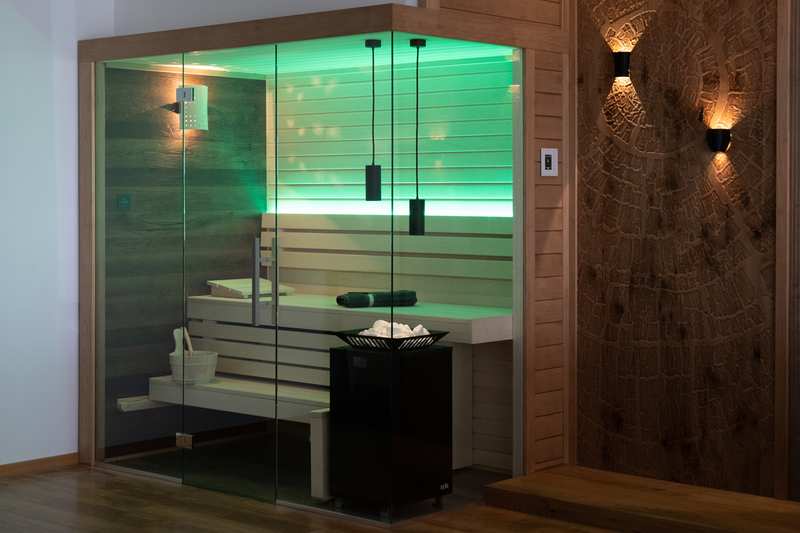

  • Uniform appearance on all sides – perfect for installation in front of glass panel or in the center of the sauna.
  • 25 kg / 55 lbs diabase sauna stones + 10 kg / 22 lbs white quartz stones included in the delivery.

Technical Specifications

Electrical connection

240V 2PH / 208V 3PH AC 60 Hz

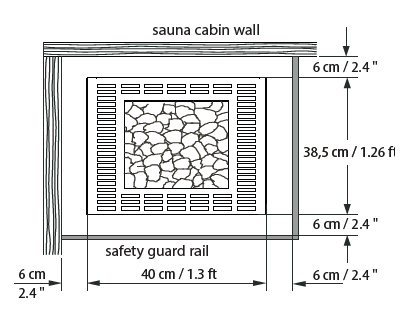

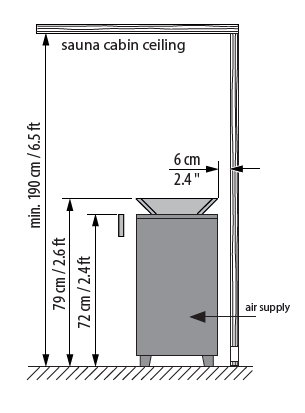

Dimensions H/W/D

72 x 40 x 38,5 cm2,4 x 1,3 x 1,3 ft

For sauna cabin size

3,7 - 5,3 qm x 1,90 m (7.5 kW)
39,8 - 57 sq ft x 6,2 ft

4,7 - 7,4 qm x 1,90 m (9.0 kW)
50,6 - 79,7 sq ft x 6,2 ft

5,8 - 7,9 qm x 1,90 m (10.5 kW)
62,4 - 85 sq ft x 6,2 ft

7,4 - 9,5 qm x 1,90 m (12.0 kW)
79,7 - 102,3 sq ft x 6,2 ft

Min. size air inlet and outlet

35 x 5 cm (7.5 kW)
1,2 x 0,2 ft

35 x 6 cm (9.0 / 10.5 kW)
1,2 x 0,2 ft

35 x 7 cm (12.0 kW)
1,2 x 0,3 ft

Weight withouth rocks

28 kg / 62 lbs

Stone filling

25 kg + 10 kg quartz stones
55 lbs + 22 lbs quartz stones

Item Number

EOS Cubo Avantgarde (208V)

Power

Item no.

7.5 kW

947523

9.0 kW

947524

10.5 kW

947525

12.0 kW

947526



EOS Cubo Avantgarde (240V)

Power

Item no.

7.5 kW

947527

9.0 kW

947528
