Finnmark Designs

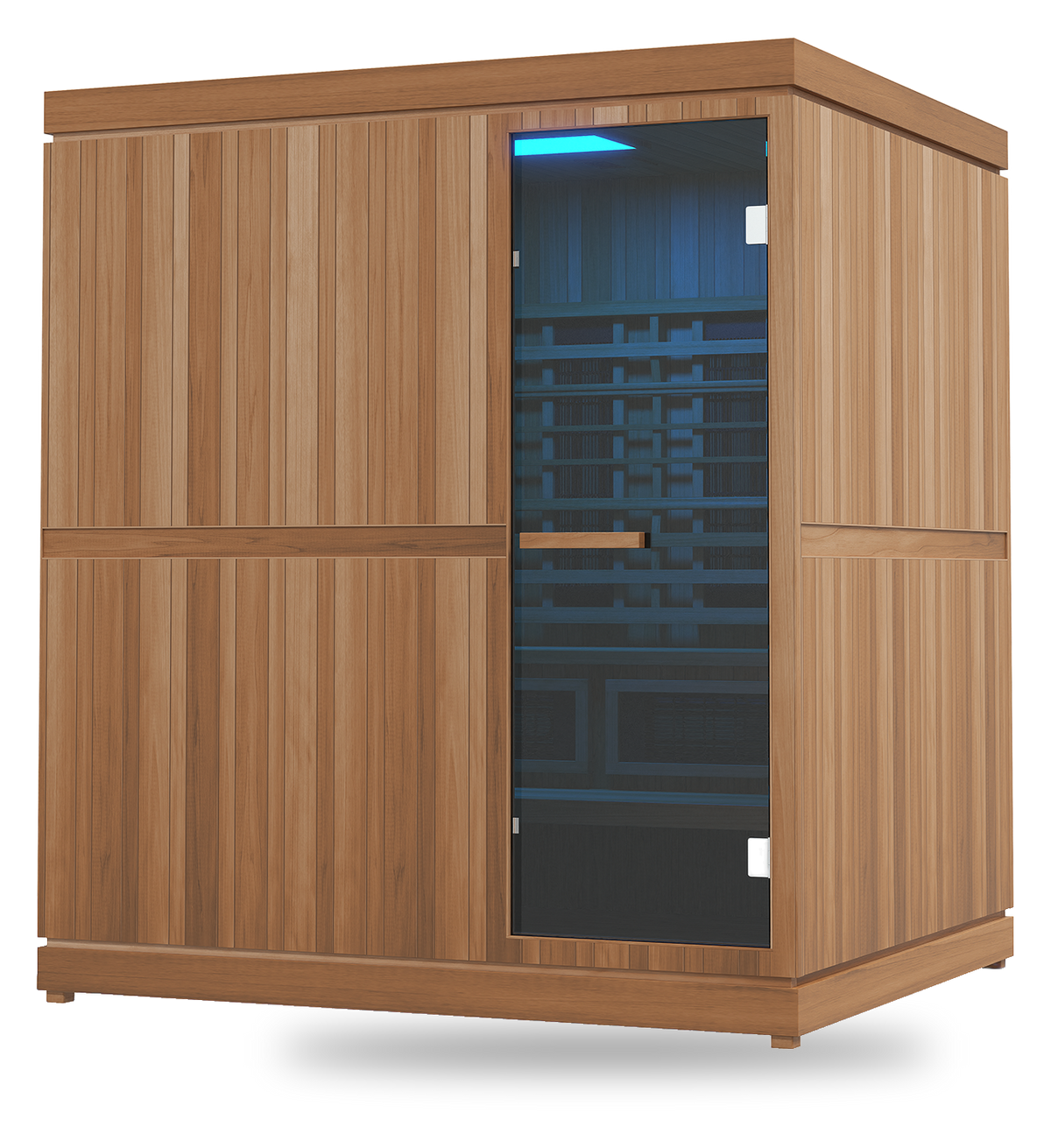

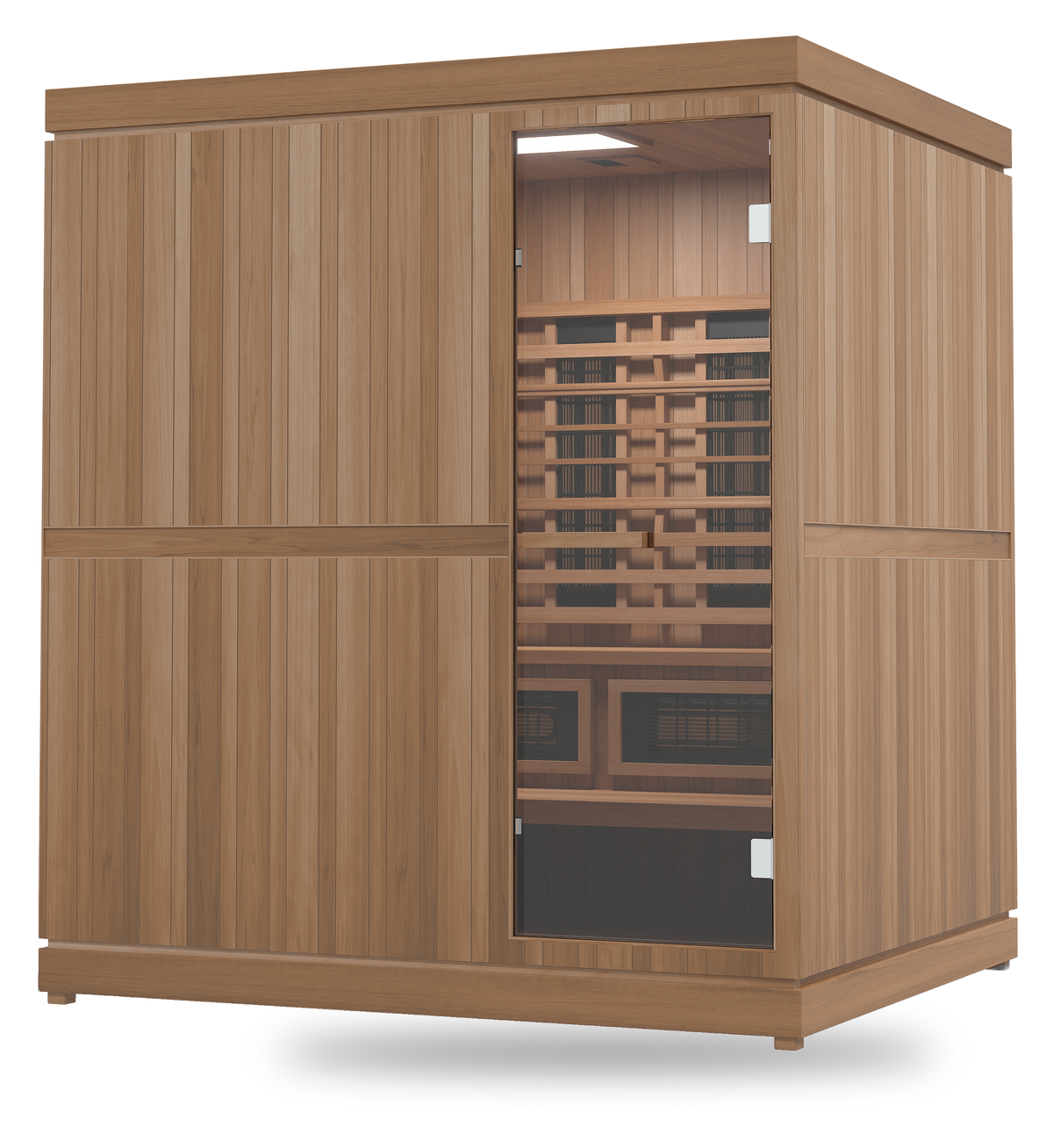

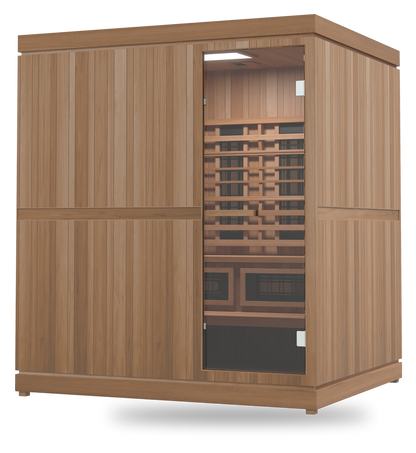

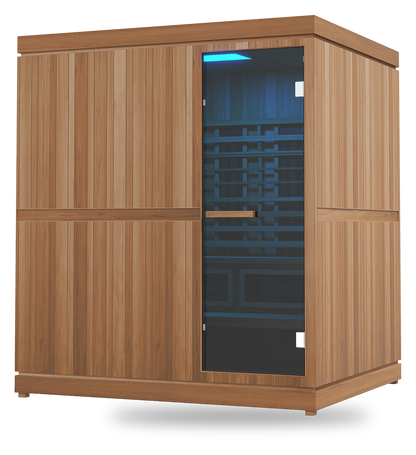

FD-5 Trinity XL | 4-Person Infrared + Steam Sauna

FD-5 Trinity XL | 4-Person Infrared + Steam Sauna

$15,799.00 CAD
$15,799.00 CAD
Sale Sold out
Shipping calculated at checkout.

The Finnmark Designs FD-5 Trinity XL is a three-in-one home sauna: UL listed Spectrum Plus infrared heaters, a Harvia KIP 4.5 kW traditional heater with vulcanite stones for steam, and a 192 diode medical grade red light therapy panel at 650 nm with chromotherapy. It is the larger version of the FD-4 Trinity.

The cabin has an extra large two-tier bench system, a Western red cedar interior and a Thermal Plus aspen exterior. An 8mm tempered glass door with gasket helps hold heat. Infrared mode reaches 170 F; the traditional heater reaches 190 F.

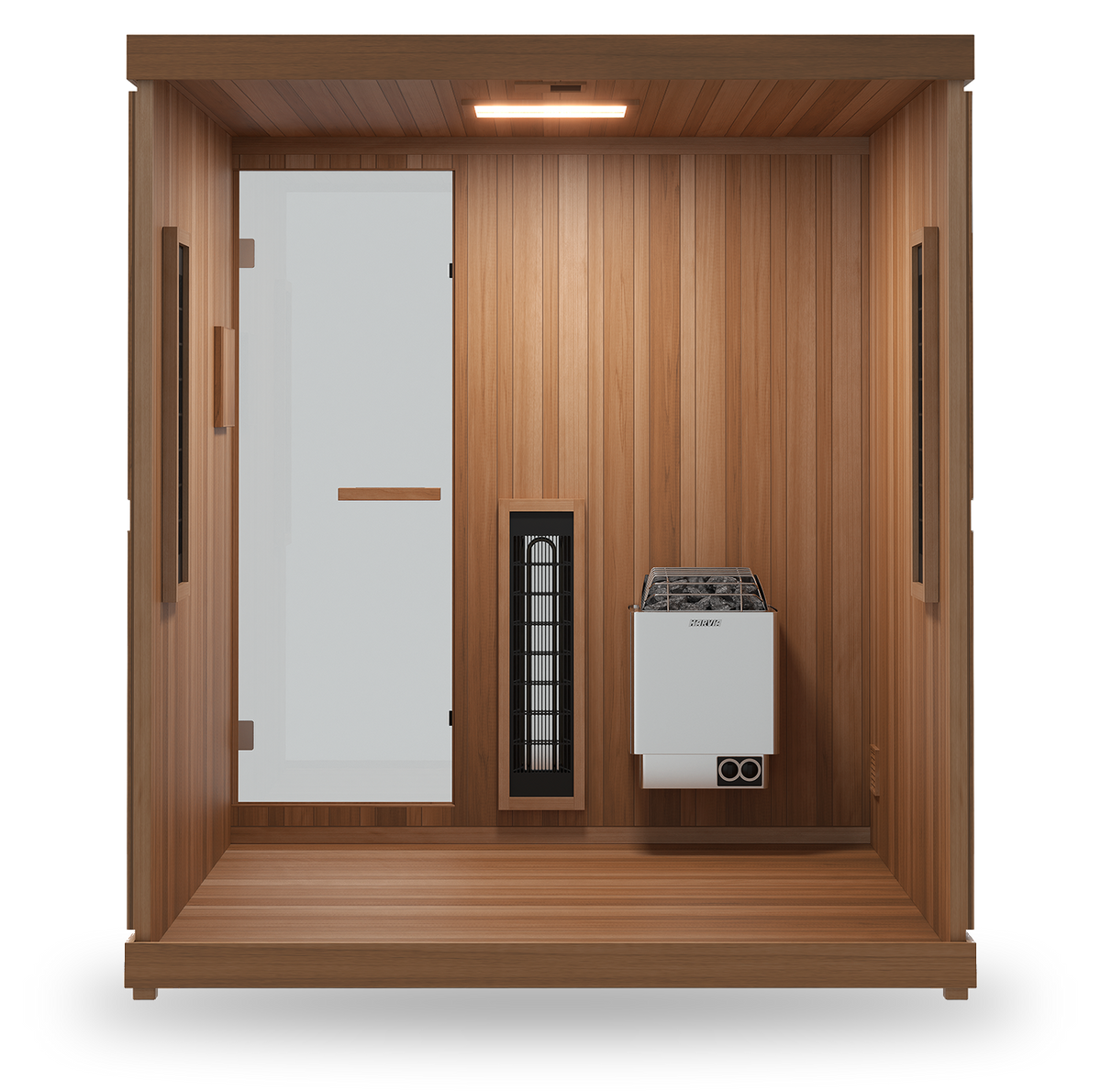

A 5 inch V2 LCD touchscreen controller with Bluetooth drives 6 inch marine grade HiFi speakers. The Harvia heater and one box of Harvia AC3000 stones (29 lb) are included; Finnmark recommends an extra box of stones so you can select the best-fitting rocks.

  • Capacity: 4 people (manufacturer rating)
  • Exterior: 72"W x 48"D x 83"H (182.8 x 121.9 x 210.8 cm)
  • Interior: 68.5"W x 45.2"D x 75.5"H
  • Power: 2700 W infrared at 240 V (18.8 A) plus Harvia KIP 4.5 kW heater, 240 V single phase (208 V 3-phase available)
  • Max temperature: 170 F infrared, 190 F traditional
  • Materials: Western red cedar interior, Thermal Plus aspen exterior, 8mm tempered glass door 67.875" x 23.625"
  • Included: cabin panels, glass door, two-tier bench, infrared heater panels, Harvia KIP 4.5 kW heater, one box AC3000 sauna stones, red light therapy panel, V2 touchscreen controller with Bluetooth, power supply and cables, hardware
  • Certification: ETL; heater UL listed; product weight 575 lb (261 kg)
View full details
SeatsUp to 4
Exterior72 x 48 in.83 in. high
HeatInfrared + steamHarvia KIP 4.5 kW included
Max temp190 FTraditional mode
Red light192 diodes650 nm
Finnmark Designs FD-5 Trinity XL

Infrared, steam and red light in one

The FD-5 Trinity XL combines UL listed Spectrum Plus infrared heaters, a Harvia KIP 4.5 kW traditional heater with stones for steam, and a 192-diode 650 nm red light therapy panel. It is the larger version of the FD-4 Trinity.

An extra-large two-tier bench sits in a Western red cedar interior behind a Thermal Plus aspen exterior. Infrared mode reaches 170 F; the traditional heater reaches 190 F.

FD-5 Trinity XL | 4-Person Infrared + Steam Sauna
Three in one

Infrared, steam and red light

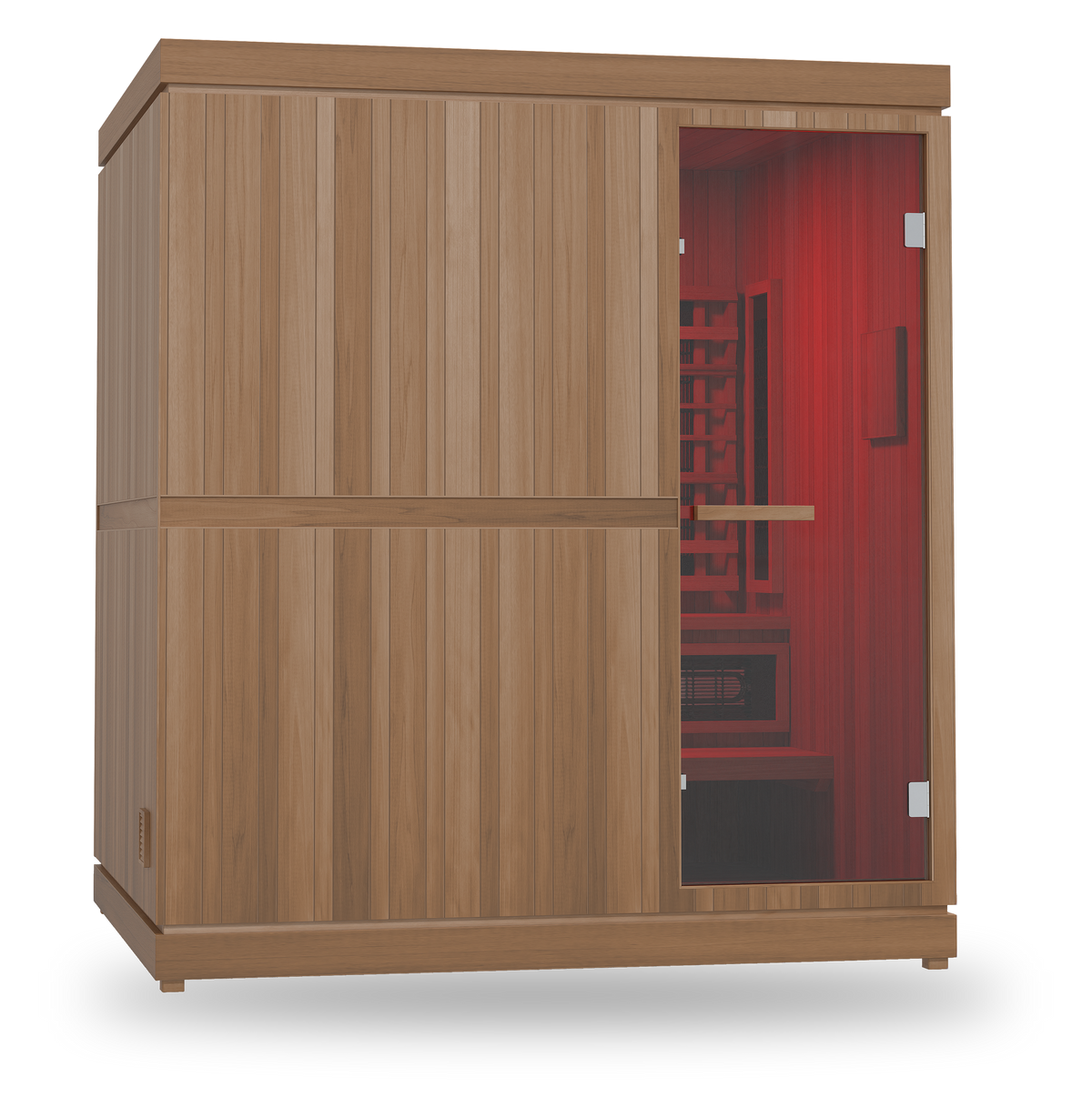

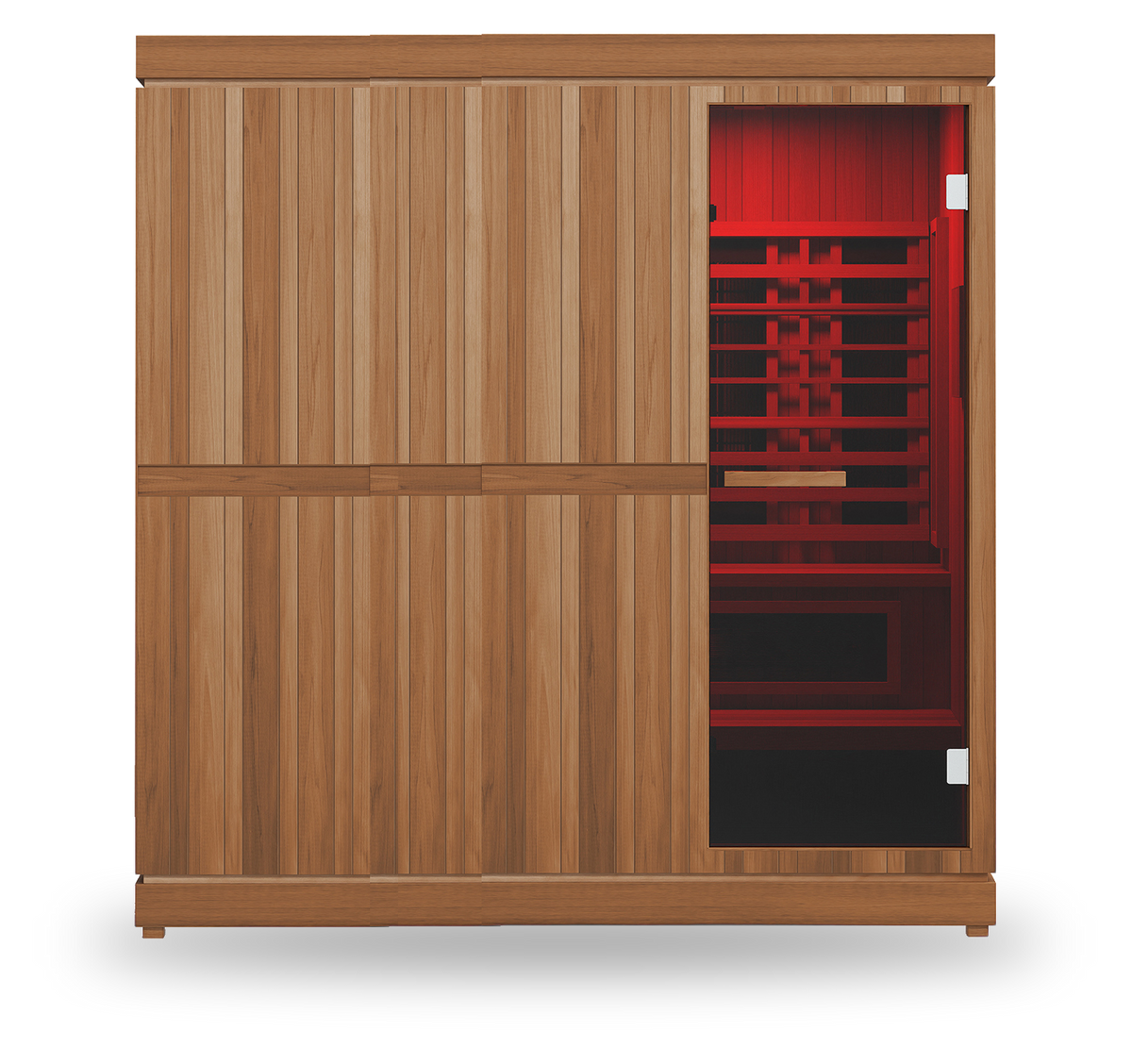

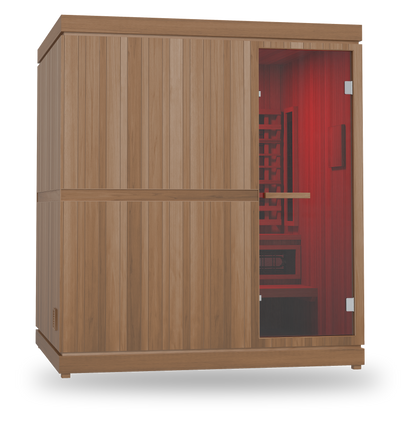

Run deep infrared sessions, pour water over hot stones for steam, or add red light therapy and chromotherapy.

FD-5 Trinity XL | 4-Person Infrared + Steam Sauna
Space

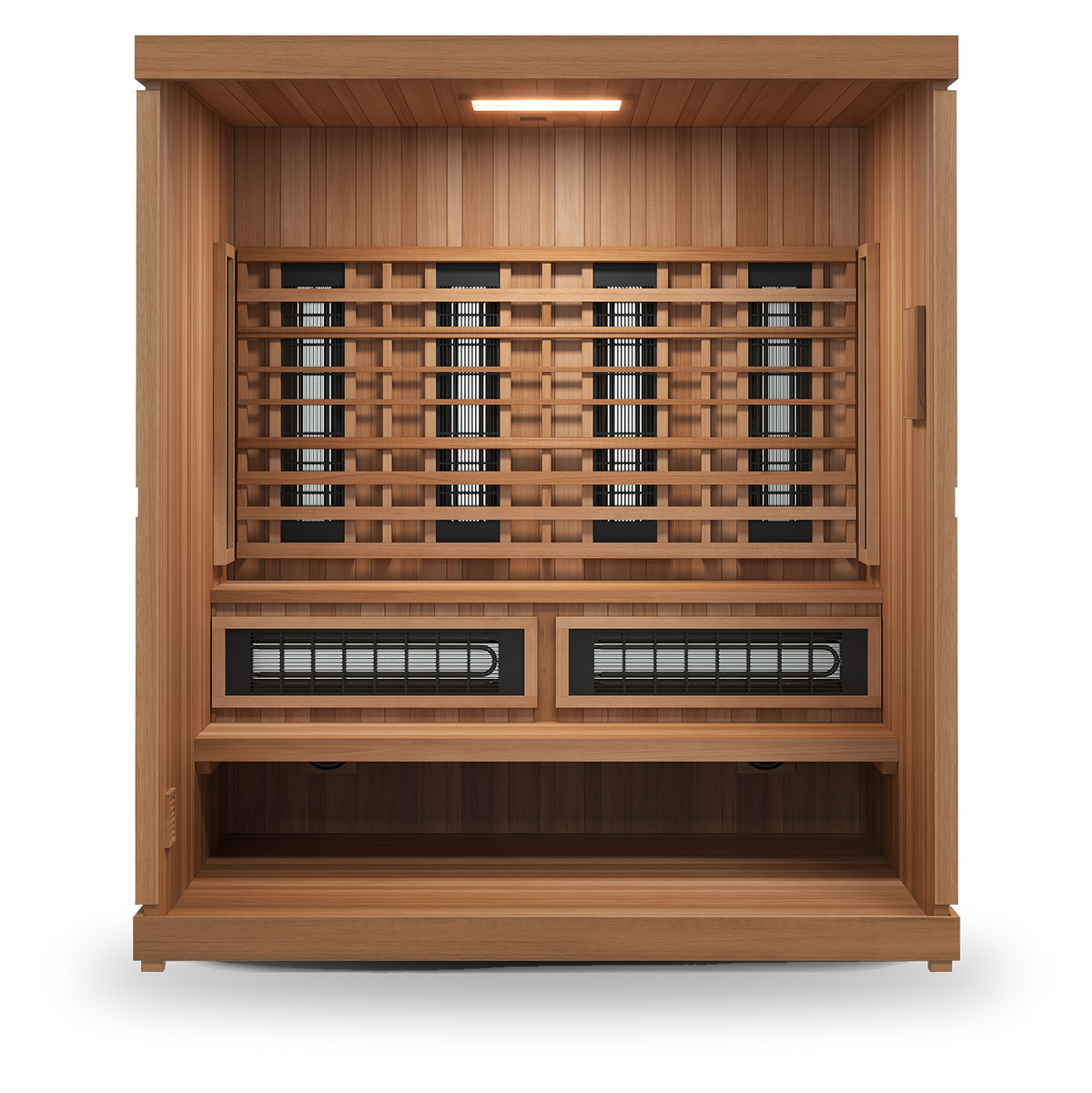

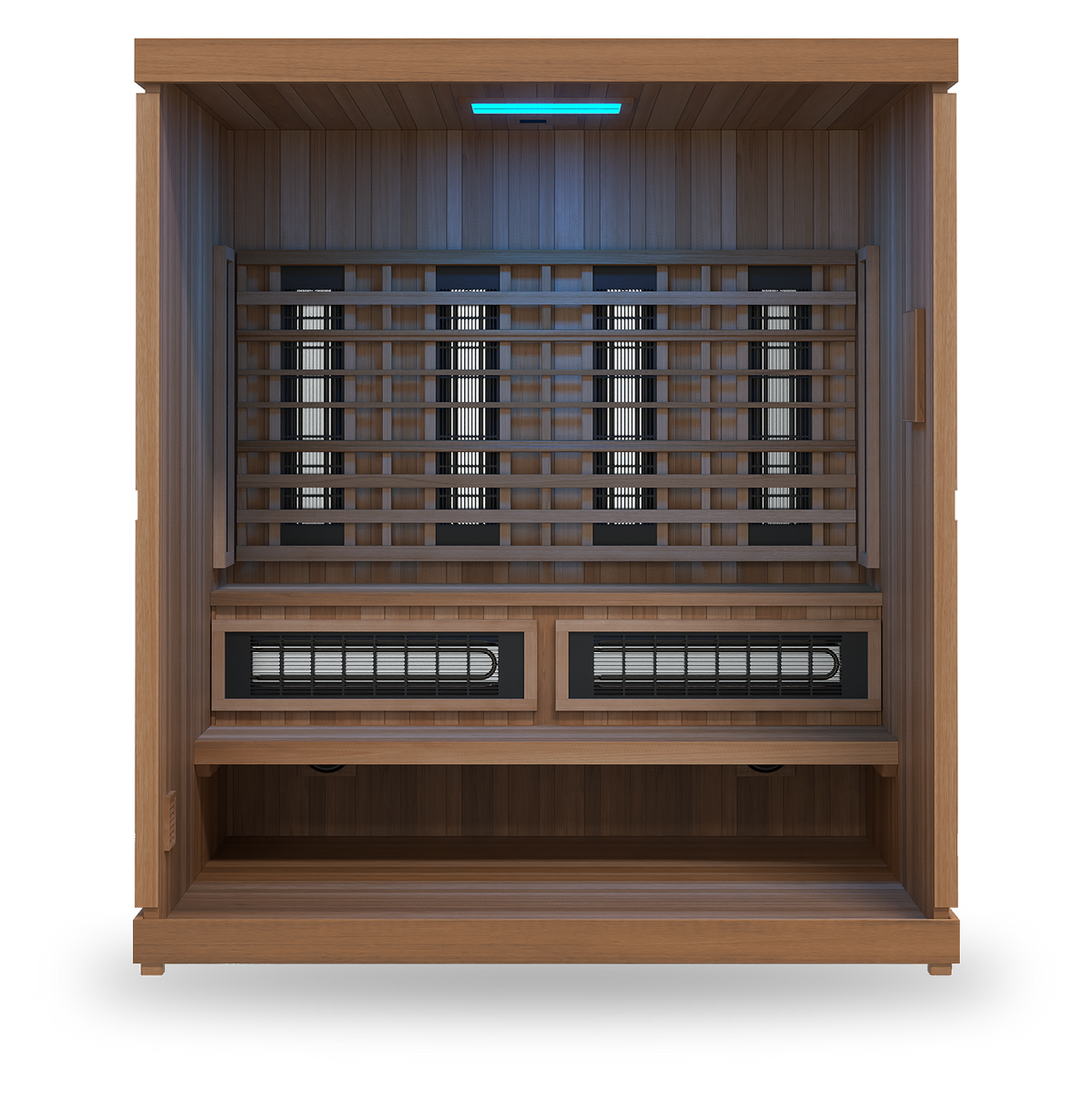

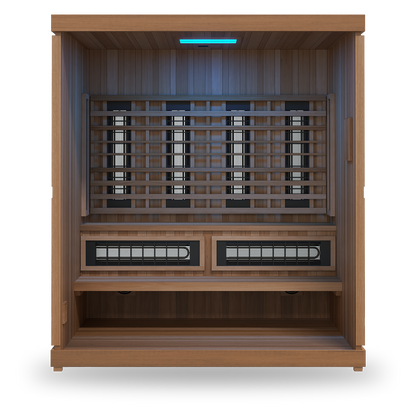

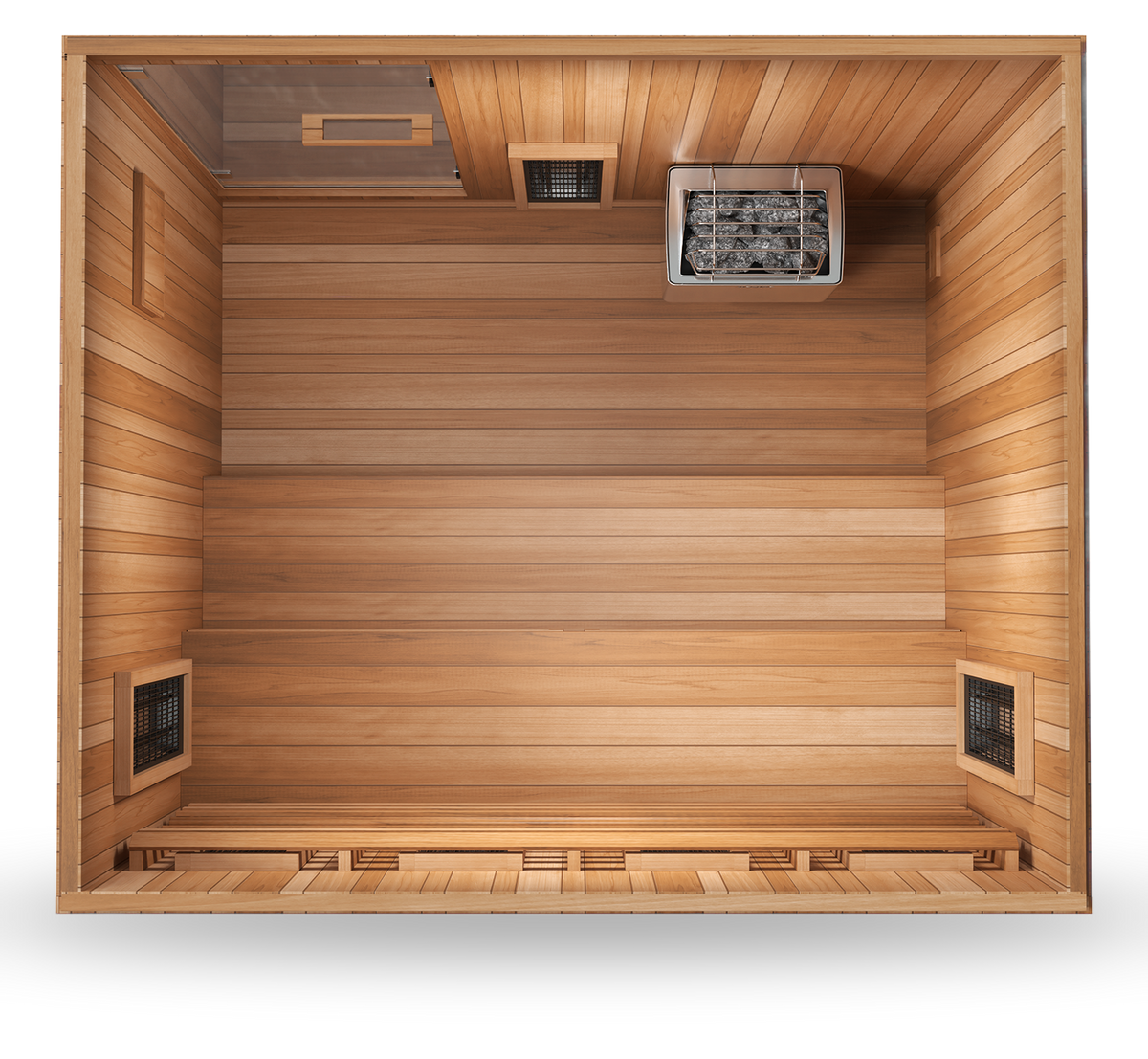

An extra-large two-tier bench

The XL cabin gives four people a two-tier cedar bench, with a gasketed 8mm glass door to hold the heat.

FD-5 Trinity XL | 4-Person Infrared + Steam Sauna
Control

Touchscreen and sound

A 5 in. V2 touchscreen with Bluetooth runs the sauna and 6 in. marine-grade HiFi speakers.

In the delivery

What comes with it

Trinity XL sauna

  • Cabin panels
  • 8mm tempered glass door with gasket
  • Two-tier bench
  • Infrared heater panels
  • Harvia KIP 4.5 kW heater
  • One box Harvia AC3000 stones (29 lb)
  • Red light therapy panel
  • V2 touchscreen controller with Bluetooth
  • Power supply, cables and hardware

Infrared heaters and the Harvia heater ship with the cabin. Electrical work must be done by a licensed electrician.

Specifications

FD-5 Trinity XL

Capacity
4 people
Exterior
72 in. W x 48 in. D x 83 in. H
Interior
68.5 in. W x 45.2 in. D x 75.5 in. H
Infrared
2,700 W at 240 V (18.8 A)
Traditional heater
Harvia KIP 4.5 kW, 240 V single phase (208 V 3-phase available)
Max temperature
170 F infrared; 190 F traditional
Materials
Western red cedar interior; Thermal Plus aspen exterior
Certification
ETL; heater UL listed
Weight
575 lb (261 kg)
Questions

Before you order

Something we haven't covered? Call (888) 715-7999 or book a free design call.

Is the heater included?

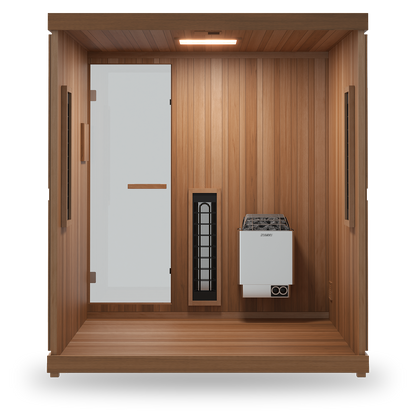

Yes. The Harvia KIP 4.5 kW heater and one box of AC3000 stones are included. Finnmark recommends a second box of stones so you can choose the best-fitting rocks.

What electrical service does it need?

240 V single phase for the infrared and the Harvia heater, installed by a licensed electrician. A 208 V three-phase version is available; ask us.

Where do you ship and install?

Kits ship across Canada and the US on a pallet by freight. Installation is available in the Okanagan, Calgary and Edmonton. Book a free design call at (888) 715-7999 or through our contact page.
