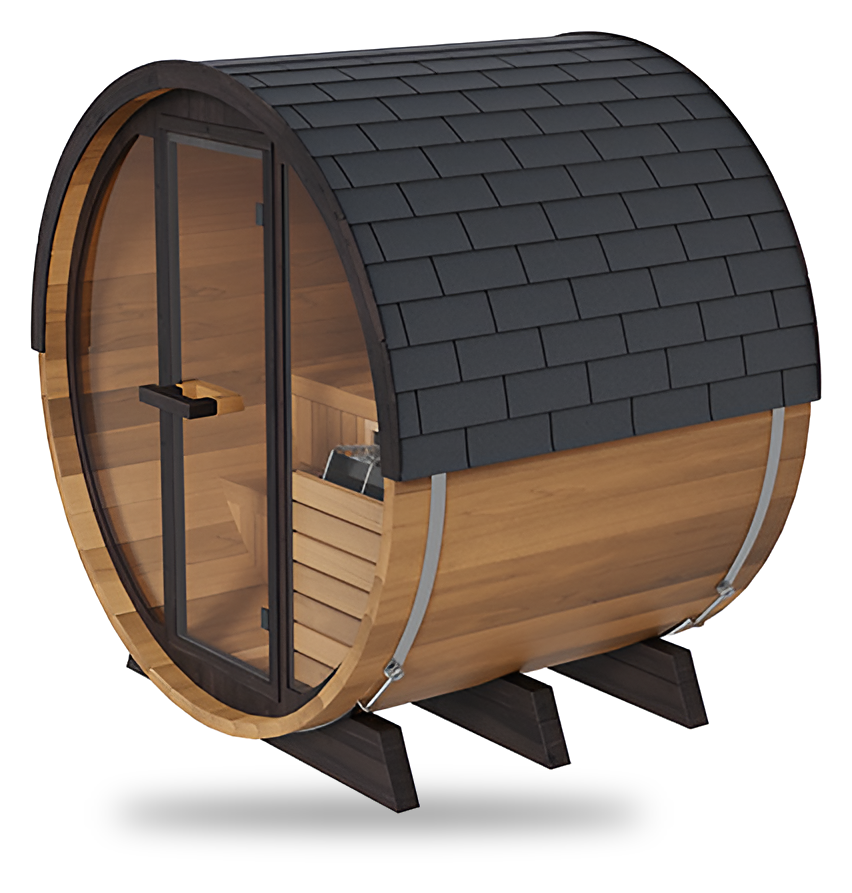

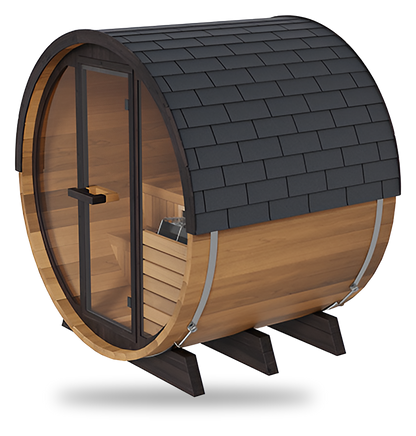

FD-6 | Combination Barrel Sauna (Infrared + Steam)

FD-6 | Combination Barrel Sauna (Infrared + Steam)

$16,399.00 CAD
$16,399.00 CAD
Sale Sold out
Shipping calculated at checkout.

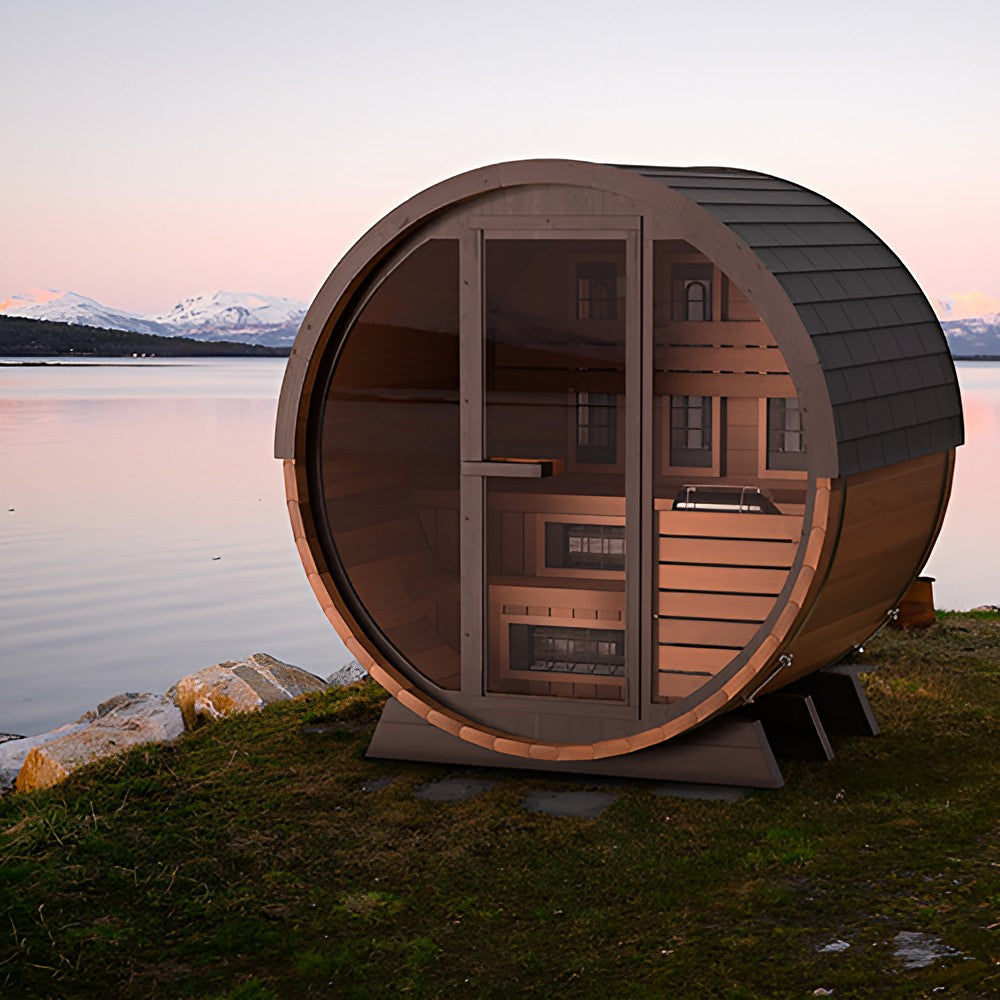

The Finnmark Designs FD-6 combination barrel sauna is an outdoor barrel that pairs Spectrum Plus infrared heaters with a traditional 4.5 kW heater, so you can run deep-penetrating infrared sessions or pour water over hot stones for steam. With the rock heater in use the sauna reaches 190 F.

The FD-6 is built from clear grade Western red cedar, with 1.5 inch thick full-length staves and dual-level cedar benches and backrests that stay cool to the touch. Cedar is naturally aromatic and antimicrobial. The FD-7 is the same barrel in Thermo-Aspen.

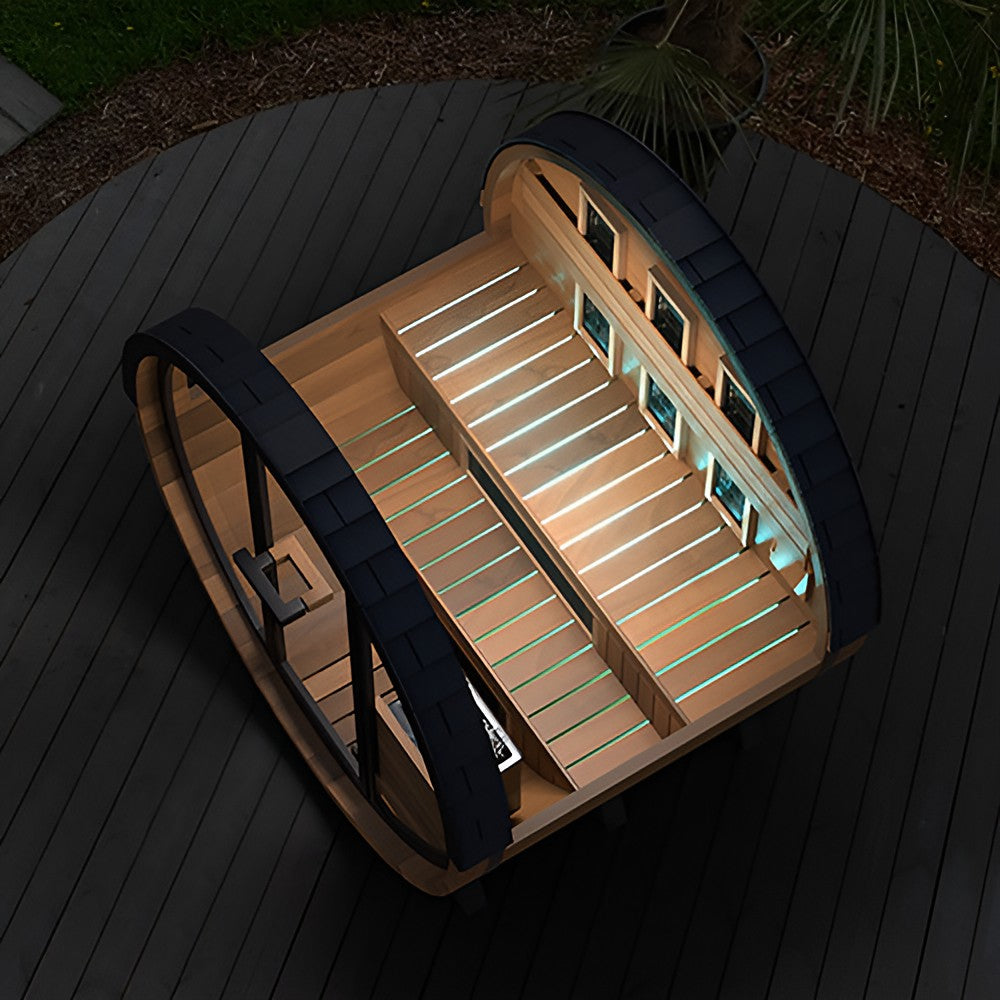

An 8mm tempered glass door and window panels with gaskets open up the interior. A complete shingle roof kit with barrier keeps the barrel dry, and the supports are stained and sealed shou sugi ban style. A built-in LCD touchscreen controller with Wi-Fi allows remote operation, with Bluetooth audio and an under-bench RGB LED light.

Infrared heaters are built into the barrel. Please confirm the traditional 4.5 kW heater and stone configuration with us before ordering.

  • Exterior: 75"L x 79"W x 75"H (190.5 x 200.6 x 190.5 cm); 6 x 6 barrel
  • Interior: 66"L x 72"W x 71"H; room volume 135 cu ft
  • Benches: upper 71" x 24" at 33.1" high; lower 60.5" x 16" at 16.7" high
  • Material: clear grade Western red cedar, 1.5" staves, inside and out
  • Heat: Spectrum Plus low EMF infrared heaters, 1750 W, 120 V, 15 A; traditional heater 4.5 kW, wall mounted
  • Glass: 8mm tempered door 26.3" x 62.3" and windows, with gaskets
  • Included: staves, front and back panels, metal bands and clamps, shingles and insulating layer, LED under-bench light, handle, outdoor power cover, power cord, drain, hardware
  • Product weight: 830 lb (376 kg); shipping weight 1005 lb
View full details
Barrel6 x 6
Exterior75 x 79 in.75 in. high
HeatInfrared + steamUp to 190 F
WoodRed cedar1.5 in. staves
ControlWi-FiTouchscreen, Bluetooth
Finnmark Designs FD-6

A cedar barrel with infrared and steam

The FD-6 is an outdoor combination barrel that pairs Spectrum Plus infrared heaters with a traditional 4.5 kW heater, so you can run infrared sessions or pour water over hot stones for steam. With the rock heater in use it reaches 190 F.

It is built from clear grade Western red cedar in 1.5 in. full-length staves, with dual-level benches and backrests. The FD-7 is the same barrel in Thermo-Aspen.

FD-6 | Combination Barrel Sauna (Infrared + Steam)
Two ways to heat

Infrared or hot stones

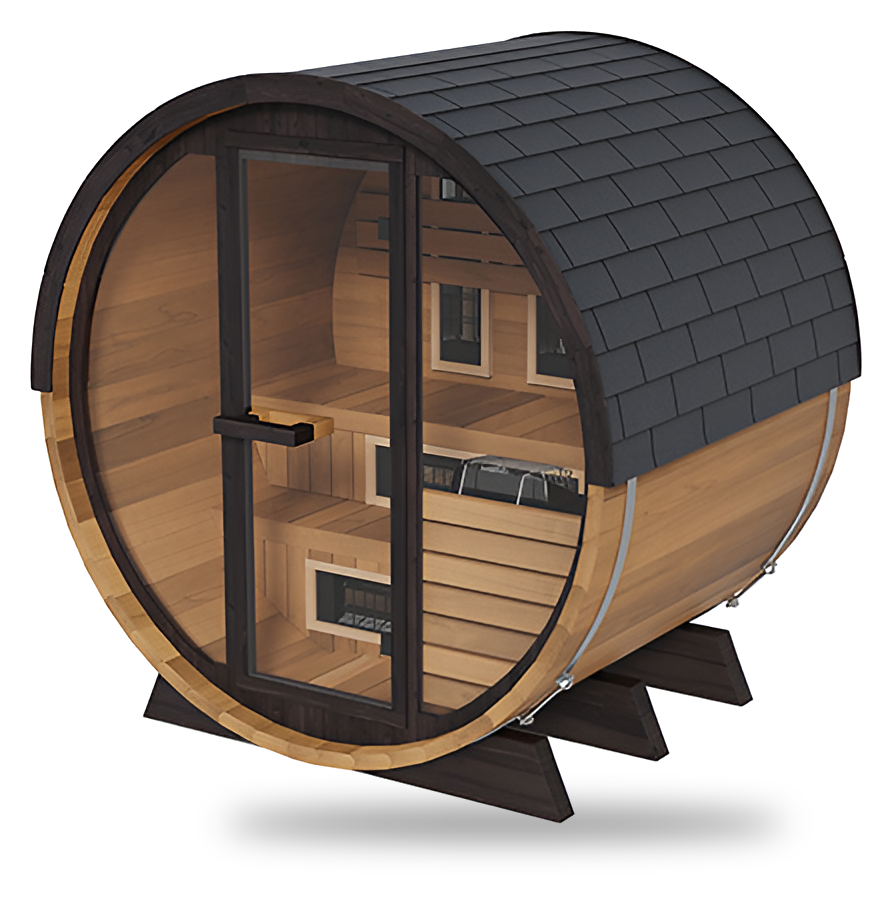

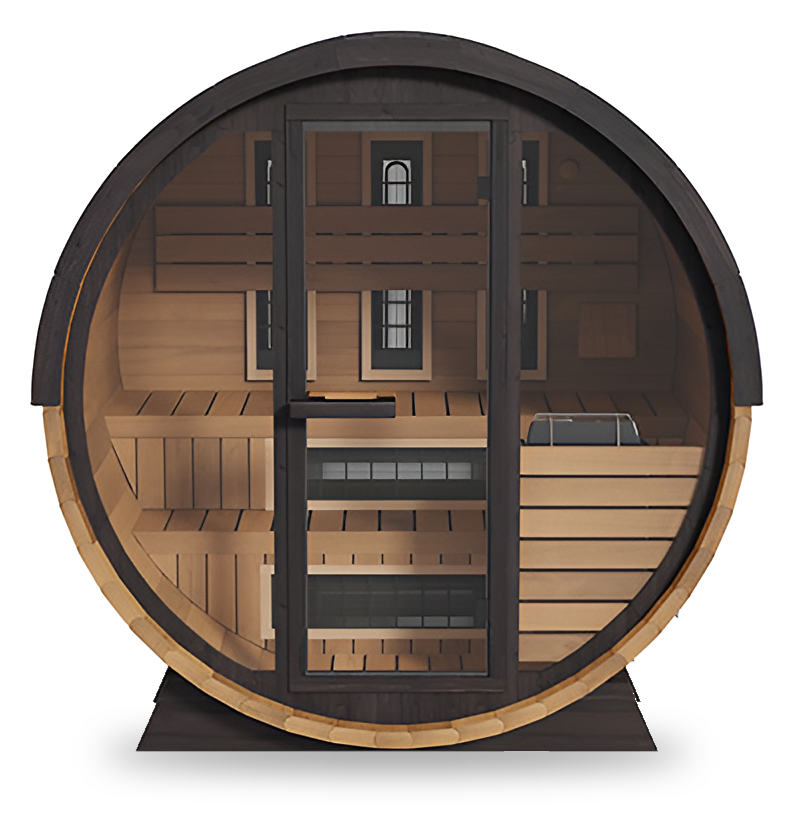

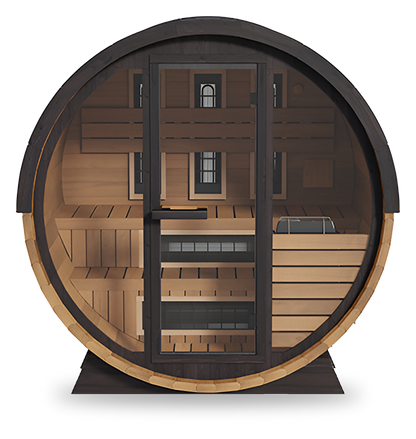

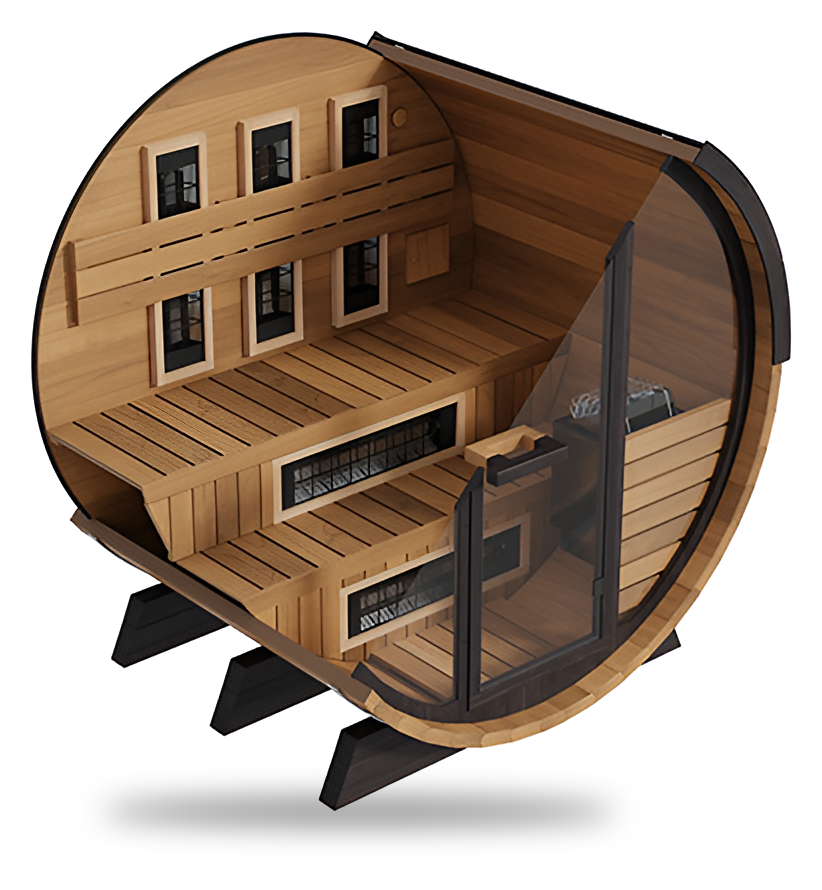

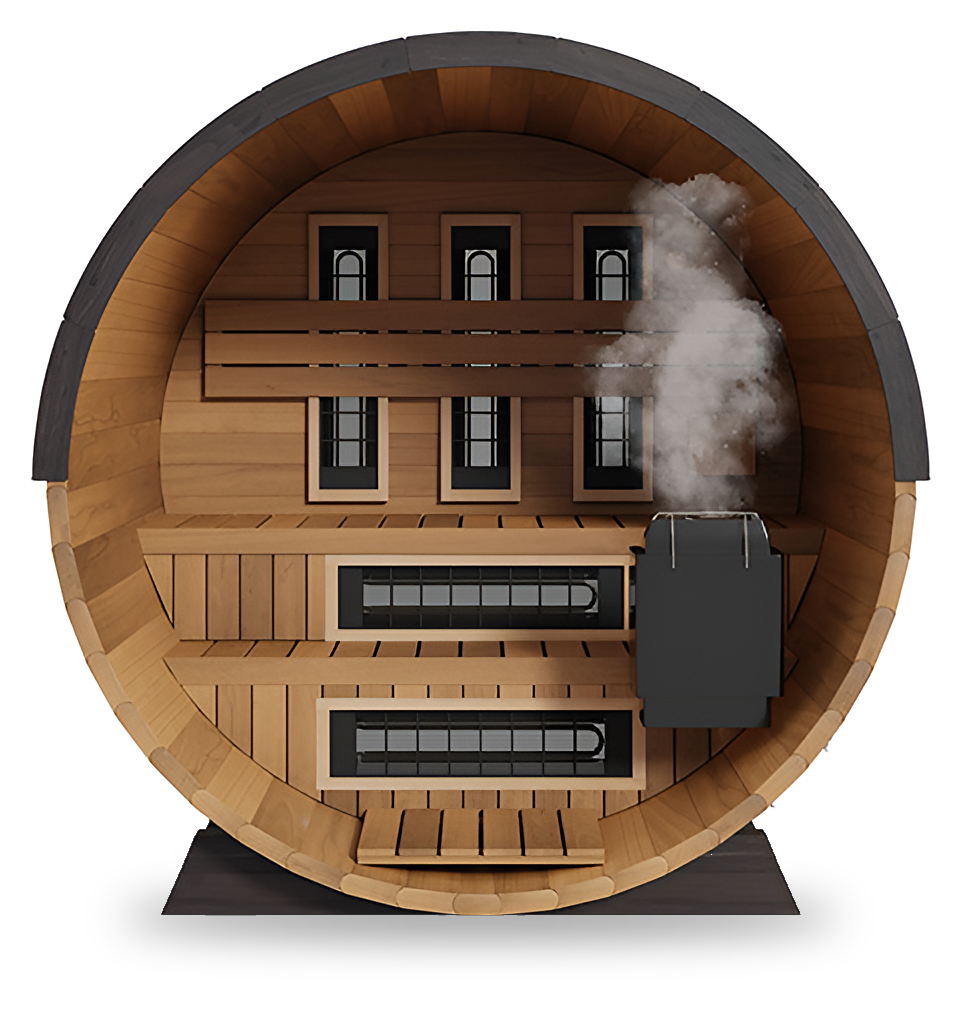

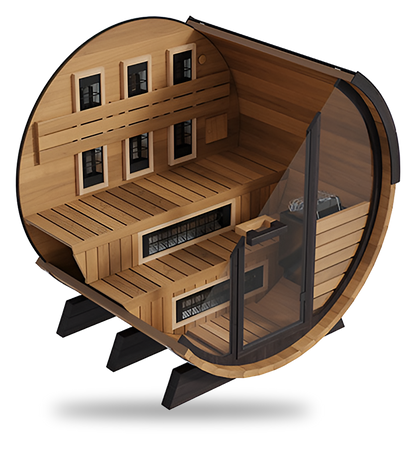

Spectrum Plus infrared heaters are built into the barrel, and a wall-mounted 4.5 kW heater adds traditional steam.

FD-6 | Combination Barrel Sauna (Infrared + Steam)
The wood

Clear grade cedar

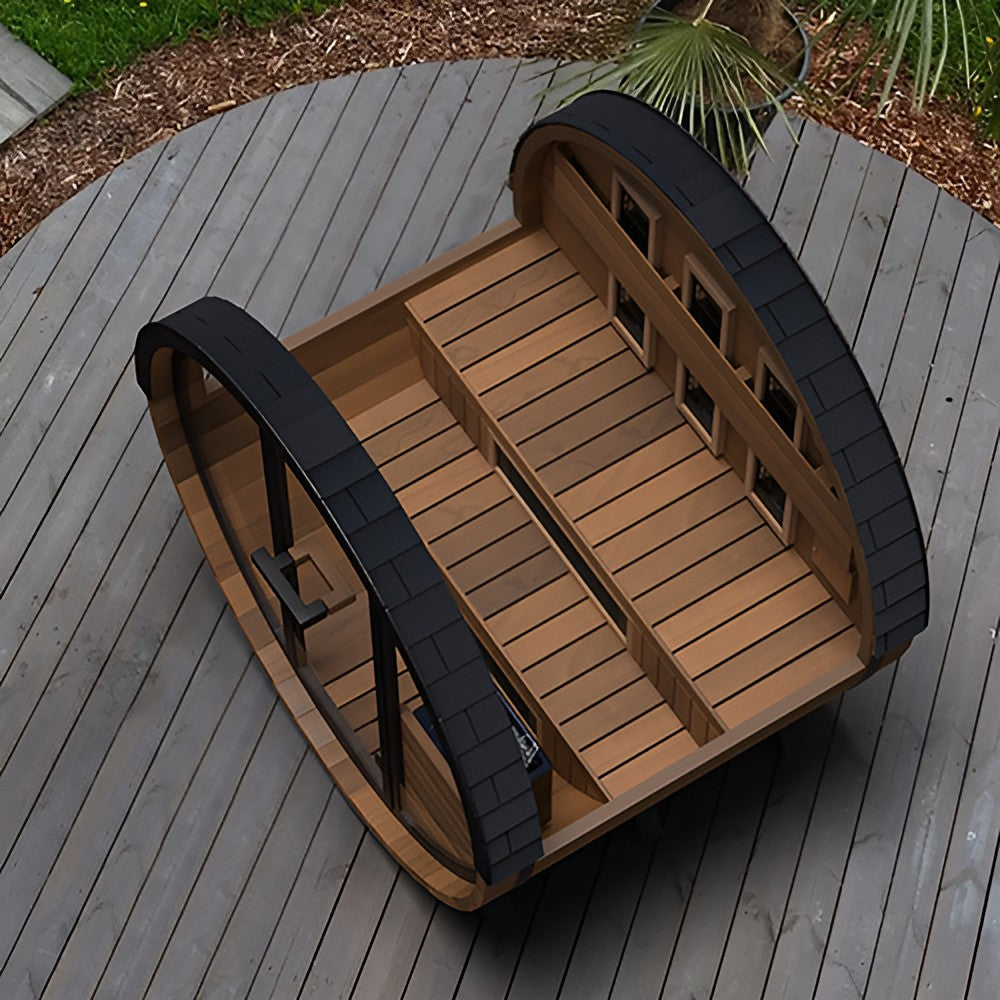

Cedar is naturally aromatic and antimicrobial, and the dual-level benches stay cool to the touch.

FD-6 | Combination Barrel Sauna (Infrared + Steam)
Built for outside

Glass, shingles and shou sugi ban

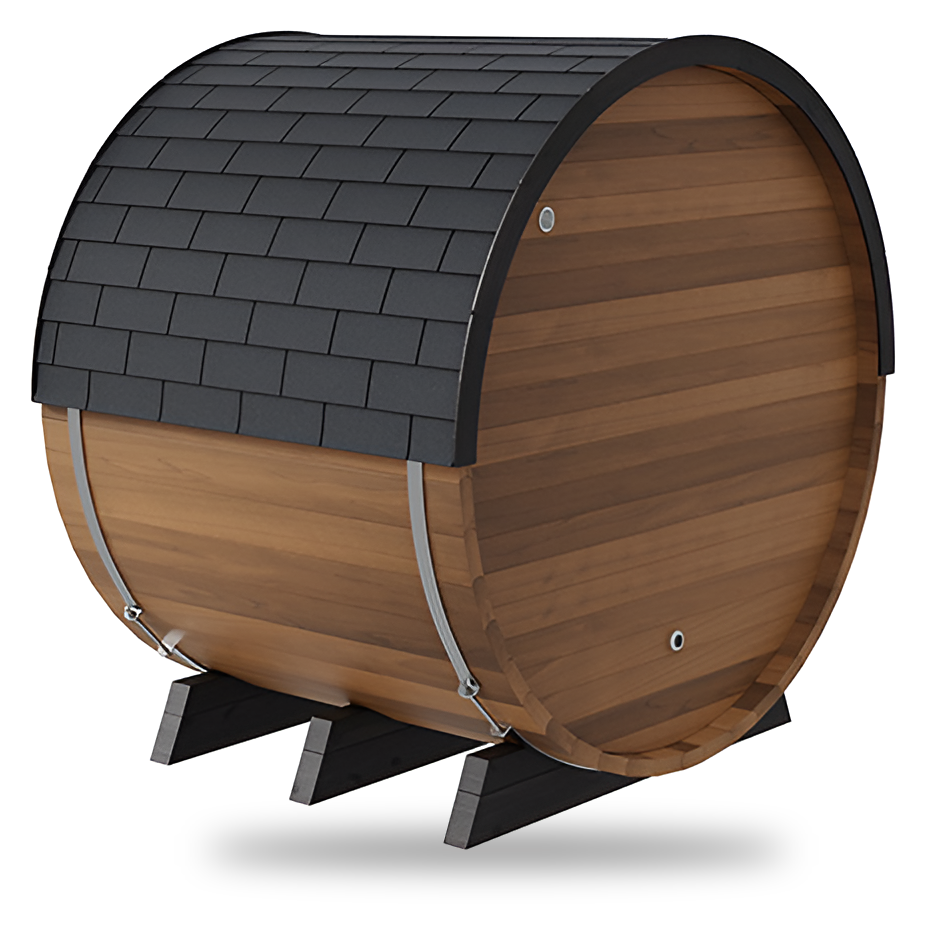

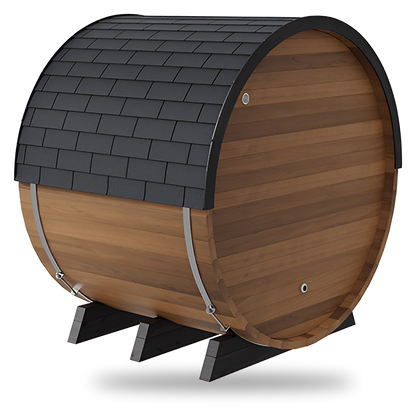

Gasketed 8mm glass door and windows, a complete shingle roof kit with barrier, and supports stained and sealed shou sugi ban style.

In the delivery

What comes with it

Combination barrel

  • Staves, front and back panels
  • Metal bands and clamps
  • Shingles and insulating layer
  • 8mm tempered glass door and windows
  • Spectrum Plus infrared heaters
  • LED under-bench light
  • Outdoor power cover and power cord
  • Drain and hardware

Electrical work must be done by a licensed electrician.

Specifications

FD-6

Exterior
75 in. L x 79 in. W x 75 in. H
Interior
66 in. L x 72 in. W x 71 in. H; 135 cu. ft.
Benches
Upper 71 x 24 in.; lower 60.5 x 16 in.
Material
Western red cedar, 1.5 in. staves inside and out
Infrared
Spectrum Plus low EMF, 1,750 W, 120 V, 15 A
Traditional heater
4.5 kW, wall mounted
Glass
8mm tempered door 26.3 x 62.3 in. and windows
Weight
830 lb (376 kg); ships at 1,005 lb
Questions

Before you order

Something we haven't covered? Call (888) 715-7999 or book a free design call.

Is the traditional heater included?

The infrared heaters are built in. Please confirm the 4.5 kW traditional heater and stone configuration with us before ordering and we will set it up correctly.

FD-6 or FD-7?

They are the same barrel. The FD-6 is clear grade Western red cedar; the FD-7 is thermally modified Thermo-Aspen.

Where do you ship and install?

Kits ship across Canada and the US on a pallet by freight. Installation is available in the Okanagan, Calgary and Edmonton. Book a free design call at (888) 715-7999 or through our contact page.
